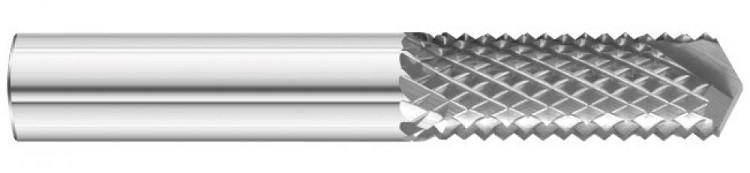

0.25 Inch( 1/4) Dia x 0.25 Shank x 1 Flute x 3 OAL - Right Hand Spiral - Style D - 135 Deg Drill Point Burr Router- 10 Flute - Uncoated - Solid Carbide - ID: 494023-26263

Part Number: 494023-26263

Your Price: $65.10CAD

Availability: In Stock

0.25 Inch( 1/4) Dia x 0.25 Shank x 1 Flute x 3 OAL - Right Hand Spiral, Style D - 135 Deg Drill Point Burr Router- 10 Flute - Uncoated, Solid Carbide - ID: 494023-26263

Feature: Tool Diameter: 1/4 Inch, 0.25 Inch, 6.35mm

Feature: Connection Diameter (Machine Side): 1/4 Inch, 0.25 Inch, 6.35mm

Feature: Over All Length(OAL): 3 Inch, 3 Inch, 76.2mm

Feature: Flute Length: 1 Inch, 25.4mm

Feature 5 Number of Flutes: 10

Add Name:

*Add new shipping info at checkout

Quantity

Description
Feature 6
Feature 9

0.25 Inch( 1/4) Dia x 0.25 Shank x 1 Flute x 3 OAL - Right Hand Spiral, Style D - 135 Deg Drill Point Burr Router- 10 Flute - Uncoated, Solid Carbide - ID: 494023-26263
The 2600 MATRX Burr Router produces clean shearing of materialâ€™s fibers and allows for aggressive removal rates with minimal delamination. The 2600 MATRX Burr Router is available with no end cut, burr style end cut, end mill end cut, and 135 Deg drill poi

Specs
Cutting Diam	1/4
Cutting Diam	0.25
M-Cutting Diam	6.35
Shank Diam	1/4
Shank Diam	0.25
M-Shank Diam	6.35
Overall Length	3
Overall Length	3
M-Overall Length	76.2
Flute Length	1
M-Flute Length	25.4
Flute Length	1
# of flutes	10
Flute Spiral ID	RH
Flute Spiral Description	Right Hand Spiral
Coating Name	Uncoated
Double Ended	No
End Type Description	Style D - 135 Deg Drill Point
Helix Angle	28
Coolant	No
Cutting Direction Description	Right
Cutting Direction ID	RH
End Type ID	RD
