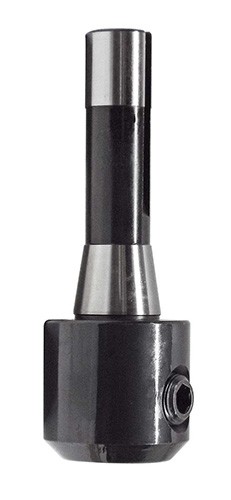

1 Inch R8 END MILL HOLDER - ID: 437271-T0302

Part Number: 437271-T0302

Your Price: $145.82CAD

Availability in Stock

1 Inch R8 END MILL HOLDER - ID: 437271-T0302

Feature: Connection Diameter (Workpiece Side): 1 Inch

Feature: Connection Diameter (Machine Side): R8

Feature: Protruding Length: 2.087 Inch

Add Name:

*Add new shipping info at checkout

Quantity

Description

1 Inch R8 END MILL HOLDER - ID: 437271-T0302

Material: Chrome Alloy Steel

Finish: Black

Shank Type: R8

Taper Size: R8

Hole Diameter: 1"

Nose Diameter: 2.087"

Projection(MM): 2.02"

Projection(INCH): 2.02"

Over All Length(INCH): 6.02"

Set Screw Thread: 3/4-16X19/32

Coolant Type: Through Spindle

Draw Bar Thread Size: 7/16"-20

TIR: 0.0001

Bore Tolerance: H7

Weight(LBS): 2

Weight(OZ): 5

P-OAL: 7

POAH: 2

P-OAW: 2

Use the Part # to find the dimensions in the chart below

•R8 shank to bore runout < 0.0001”

•Draw bar thread 7/16” - 20

•H7 Bore Tolerance
