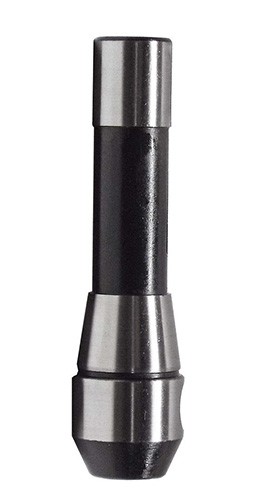

1/2 Inch R8 END MILL HOLDER - ID: 437271-T0303

Part Number: 437271-T0303
1/2 Inch R8 END MILL HOLDER - ID: 437271-T0303
1/2 Inch R8 END MILL HOLDER - ID: 437271-T0303
Your Price: $145.82CAD
Availability in Stock
1/2 Inch R8 END MILL HOLDER - ID: 437271-T0303
Feature: Connection Diameter (Workpiece Side): 1/2 Inch
Feature: Connection Diameter (Machine Side): R8
Feature: Protruding Length: 1.339 Inch

Ship To:

*Add new shipping info at checkout

1/2 Inch R8 END MILL HOLDER - ID: 437271-T0303

Material: Chrome Alloy Steel
Finish: Black
Shank Type: R8
Taper Size: R8
Hole Diameter: 1/2"
Nose Diameter: 1.339"
Projection(MM): 1.315"
Projection(INCH): 1.315""
Over All Length(INCH): 5.315"
Set Screw Thread: 7/16-20X7/16
Coolant Type: Through Spindle
Draw Bar Thread Size: 7/16"-20
TIR: 0.0001
Bore Tolerance: H7
Weight(LBS): 1
Weight(OZ): 2
P-OAL: 6
POAH: 2
P-OAW: 2

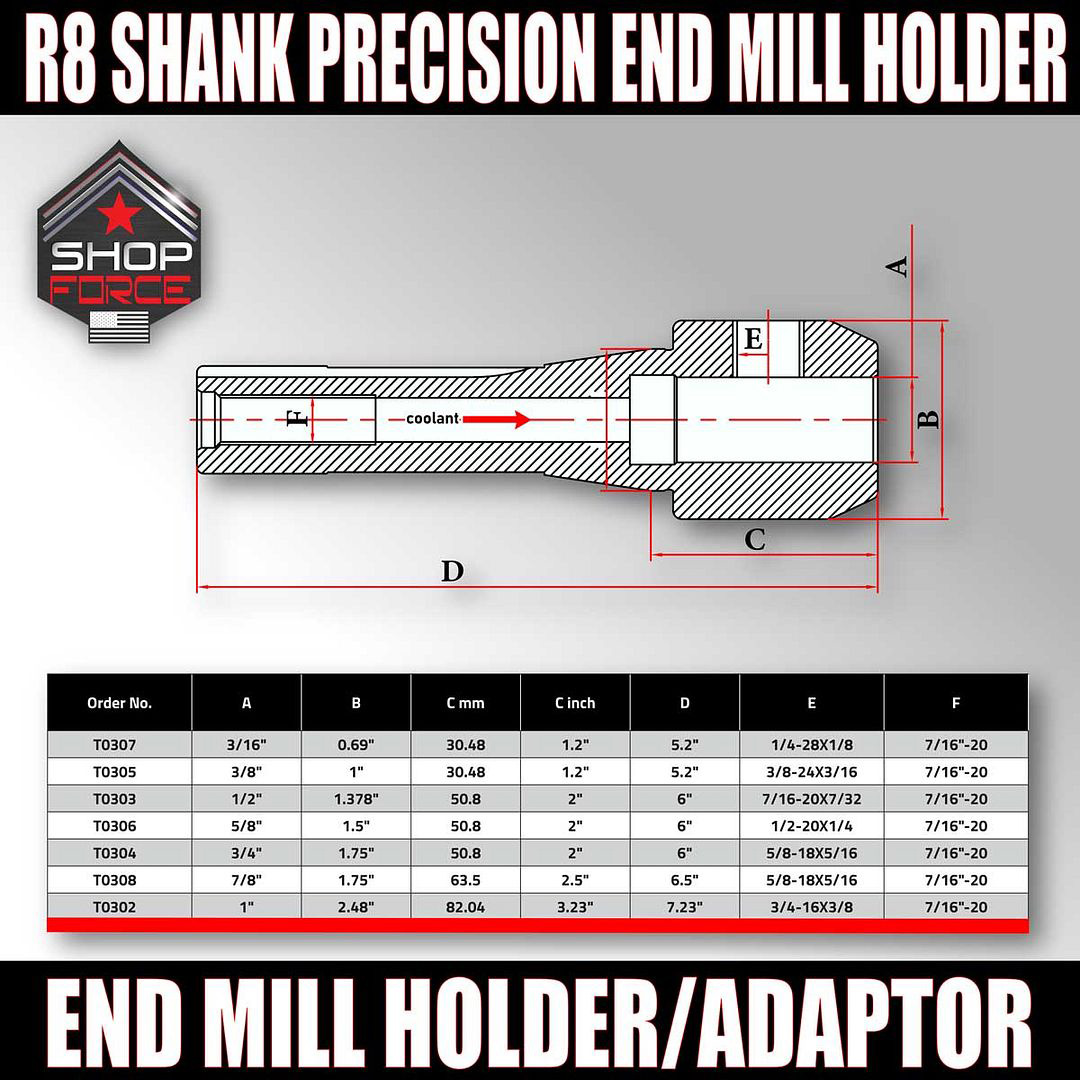

Use the Part # to find the dimensions in the chart below


•R8 shank to bore runout < 0.0001”
•Draw bar thread 7/16” - 20
•H7 Bore Tolerance
