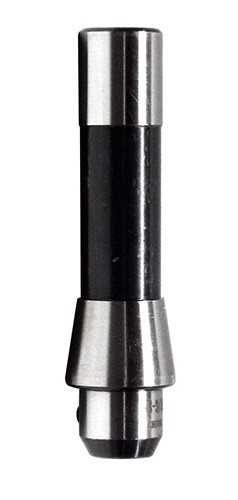

3/16 Inch R8 END MILL HOLDER - ID: 437271-T0307

Part Number: 437271-T0307
3/16 Inch R8 END MILL HOLDER - ID: 437271-T0307
3/16 Inch R8 END MILL HOLDER - ID: 437271-T0307
Your Price: $145.82CAD
Availability in Stock
3/16 Inch R8 END MILL HOLDER - ID: 437271-T0307
Feature: Connection Diameter (Workpiece Side): 3/16 Inch
Feature: Connection Diameter (Machine Side): R8
Feature: Protruding Length: 0.937 Inch

Ship To:

*Add new shipping info at checkout

3/16 Inch R8 END MILL HOLDER - ID: 437271-T0307

Material: Chrome Alloy Steel
Finish: Black
Shank Type: R8
Taper Size: R8
Hole Diameter: 3/16"
Nose Diameter: 0.937"
Projection(MM): 0.88"
Projection(INCH): 0.88"
Over All Length(INCH): 4.88"
Set Screw Thread: 1/4-28X3/8
Coolant Type: Through Spindle
Draw Bar Thread Size: 7/16"-20
TIR: 0.0001
Bore Tolerance: H7
Weight(LBS):
Weight(OZ): 15
P-OAL: 5
POAH: 2
P-OAW: 2

Use the Part # to find the dimensions in the chart below


•R8 shank to bore runout < 0.0001”
•Draw bar thread 7/16” - 20
•H7 Bore Tolerance
