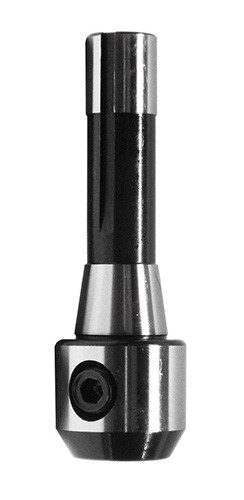

3/4 Inch R8 END MILL HOLDER - ID: 437271-T0304

Part Number: 437271-T0304

Your Price: $145.82CAD

Availability in Stock

3/4 Inch R8 END MILL HOLDER - ID: 437271-T0304

Feature: Connection Diameter (Workpiece Side): 3/4 Inch

Feature: Connection Diameter (Machine Side): R8

Feature: Protruding Length: 1.75 Inch

Add Name:

*Add new shipping info at checkout

Quantity

Description

3/4 Inch R8 END MILL HOLDER - ID: 437271-T0304

Material: Chrome Alloy Steel

Finish: Black

Shank Type: R8

Taper Size: R8

Hole Diameter: 3/4"

Nose Diameter: 1.75"

Projection(MM): 1.59"

Projection(INCH): 1.59"

Over All Length(INCH): 5.59"

Set Screw Thread: 5/8-18X17/32

Coolant Type: Through Spindle

Draw Bar Thread Size: 7/16"-20

TIR: 0.0001

Bore Tolerance: H7

Weight(LBS): 2

Weight(OZ): 10

P-OAL: 8

POAH: 3

P-OAW: 3

Use the Part # to find the dimensions in the chart below

•R8 shank to bore runout < 0.0001”

•Draw bar thread 7/16” - 20

•H7 Bore Tolerance
