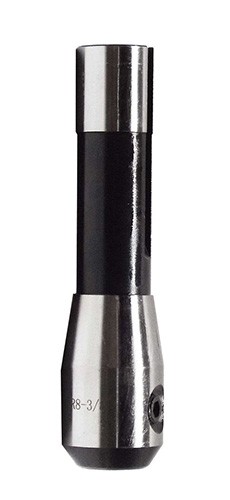

3/8 Inch R8 END MILL HOLDER - ID: 437271-T0305

Part Number: 437271-T0305
3/8 Inch R8 END MILL HOLDER - ID: 437271-T0305
3/8 Inch R8 END MILL HOLDER - ID: 437271-T0305
Your Price: $145.82CAD
Availability in Stock
3/8 Inch R8 END MILL HOLDER - ID: 437271-T0305
Feature: Connection Diameter (Workpiece Side): 3/8 Inch
Feature: Connection Diameter (Machine Side): R8
Feature: Protruding Length: 1.26 Inch

Ship To:

*Add new shipping info at checkout

3/8 Inch R8 END MILL HOLDER - ID: 437271-T0305

Material: Chrome Alloy Steel
Finish: Black
Shank Type: R8
Taper Size: R8
Hole Diameter: 3/8"
Nose Diameter: 1.26"
Projection(MM): 1.2"
Projection(INCH): 1.2"
Over All Length(INCH): 5.2"
Set Screw Thread: 3/8-24X3/8
Coolant Type: Through Spindle
Draw Bar Thread Size: 7/16"-20
TIR: 0.0001
Bore Tolerance: H7
Weight(LBS): 1
Weight(OZ): 2
P-OAL: 6
POAH: 2
P-OAW: 2

Use the Part # to find the dimensions in the chart below


•R8 shank to bore runout < 0.0001”
•Draw bar thread 7/16” - 20
•H7 Bore Tolerance
